Project Overview
69
Guest Rooms
Paguera
Mallorca Coast
3
Vulcan Units
Location: Paguera, Mallorca, Balearic Islands, Spain
Installation Date: March 2023
The Challenge
Hotel Morlans Garden is a 69-room coastal hotel in Paguera. With multiple buildings and varying pipe sizes, they needed a comprehensive water treatment solution that could protect every part of their system. Mineral scale in showers, sinks, and kitchen equipment leads to complaints and higher maintenance costs.
The Solution: Three Systems, Three Vulcan Models
Cold Water Main
Pipe Diameter: 90 mm
Installation: 1 x Vulcan S50
Protects the main cold water supply for the entire hotel property.
Hot Water Circuit
Pipe Diameter: 63 mm
Installation: 1 x Vulcan S10
Protects the main hot water recirculation system for all buildings.
Building N°1 Hot Water
Pipe Diameter: 32 mm
Installation: 1 x Vulcan 5000
Dedicated protection for the hot water system in Building N°1.
Vulcan Models Used
This hotel installed three different Vulcan models for complete protection:

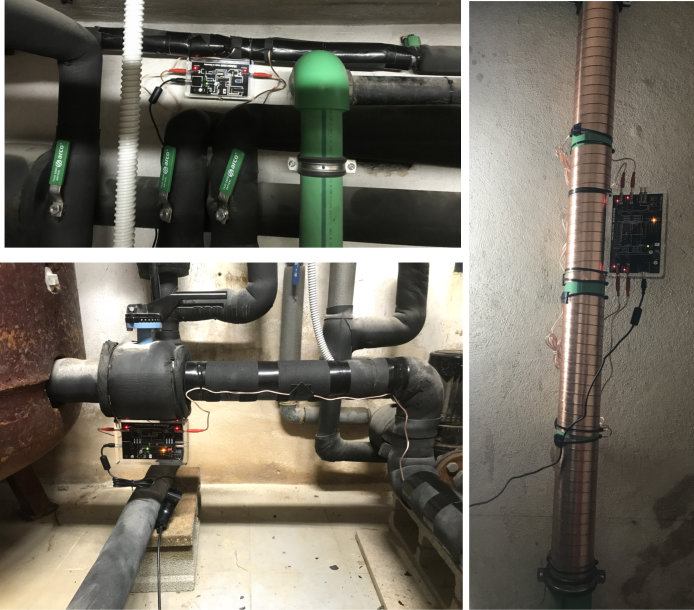

Installation Overview
System diagram showing Vulcan S50 on main cold water (90mm), Vulcan S10 on hot water circuit (63mm), and Vulcan 5000 on Building N°1 hot water (32mm)
Why Different Models Matter
Right-Sized Protection
Each Vulcan model is designed for specific pipe diameters and flow rates. Using the correct model ensures optimal performance.
Multiple Buildings
Hotels with separate buildings often need dedicated protection for each structure's unique plumbing system.
Complete Coverage
Cold water main, hot water circuit, and individual building systems all need protection for true scale prevention.
Vulcan Models Technical Specifications
| Model | Max Pipe Diameter | Max Flow Rate | Wattage | Dimensions |
|---|---|---|---|---|
| S50 | 5 inches | 300 GPM | 2.25 W | 7.9" x 4.9" x 1.6" |
| S10 | 3 inches | 65 GPM | 2.25 W | 7.5" x 4.7" x 1.6" |
| V5000 | 2 inches | 35 GPM | 2.0 W | 5.9" x 3.3" x 1.2" |
Pipe Materials: All types (iron, copper, stainless steel, PVC, PEX)
Maintenance: Zero for all models
Key Takeaway
Hotel Morlans Garden demonstrates that larger properties need a comprehensive approach. With three different Vulcan models protecting different parts of their water system, they ensure every guest room, kitchen, and facility is scale-free.
