Project Overview
400
Flats
Alcudia
Mallorca
3
Vulcan S100 Units
Property: Hotel Seaclub Mediterranean Resort
Location: Alcudia, Mallorca, Balearic Islands, Spain
Amenities: 400 flats, restaurant, bar, garden
Installation Date: July 2018
The Challenge
A resort of this scale requires comprehensive water treatment. With 400 flats, a restaurant, bar, and central boiler, protecting every water line from scale is essential for guest comfort and operational efficiency.
The Solution: Three Vulcan S100 Units
Cold Water Main 1
Model: Vulcan S100
Pipe: 4.3 inches (110 mm)
Application: Cold water pipe for 200 flats and the boiler
Hot Water Circuit
Model: Vulcan S100
Pipe: 4.3 inches (110 mm)
Application: Hot water circuit for the resort
Cold Water Main 2
Model: Vulcan S100
Pipe: 4.3 inches (110 mm)
Application: Cold water pipe for remaining 200 flats
Vulcan Model Used
This large resort installed three Vulcan S100 units, ideal for large properties with pipe diameters up to 6 inches and flow rates up to 530 GPM.
View S100 SpecificationsInstallation Summary
| System | Pipe Diameter (Inches) | Pipe Diameter (mm) | Vulcan Model | Protected Area |
|---|---|---|---|---|
| Cold Water Main 1 | 4.3 inches | 110 mm | S100 | 200 flats + boiler |
| Hot Water Circuit | 4.3 inches | 110 mm | S100 | Entire resort |
| Cold Water Main 2 | 4.3 inches | 110 mm | S100 | 200 flats |
Note: All three units are S100 models, making maintenance simple and consistent across the property.

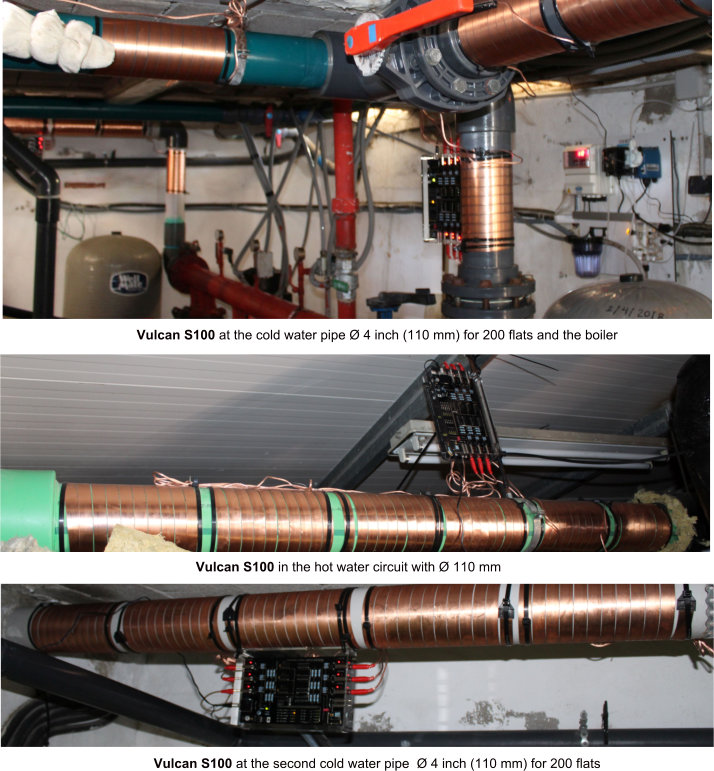

Installation Layout
Installation diagram showing three S100 units protecting cold water mains and hot water circuit
Benefits for Large Resorts
400 Flats Protected
Every apartment gets scale-free water for showers, sinks, and appliances.
Boiler Protection
Central boiler operates at peak efficiency with no scale buildup.
Restaurant & Bar
Kitchen equipment protected, glassware spotless.
Reduced Maintenance
Three units protect the entire property with zero ongoing work.
Vulcan S100 Technical Specifications
| Max Pipe Diameter: | 6 inches |
| Max Water Flow: | 530 GPM |
| Wattage: | 2.5 W |
| Dimensions: | 9.4" x 5.6" x 1.6" |
| Pipe Materials: | All types (iron, copper, stainless steel, PVC, PEX) |
| Installation: | No pipe cutting required |
| Maintenance: | Zero |
Key Takeaway
Hotel Seaclub demonstrates that large resorts need robust, scalable solutions. Three S100 units working together protect 400 flats, a boiler, and all common areas—proof that Vulcan handles properties of any size.
Related Large Hotel Case Studies
Protect Your Resort Investment
From 400 flats to central boilers, Vulcan has the right model for every application.
About the Author
Waslix provides non-chemical, maintenance-free scale prevention using Vulcan technology. This case study documents three Vulcan S100 units protecting Hotel Seaclub Mediterranean Resort in Alcudia, Mallorca, installed in July 2018.
